Introduction:

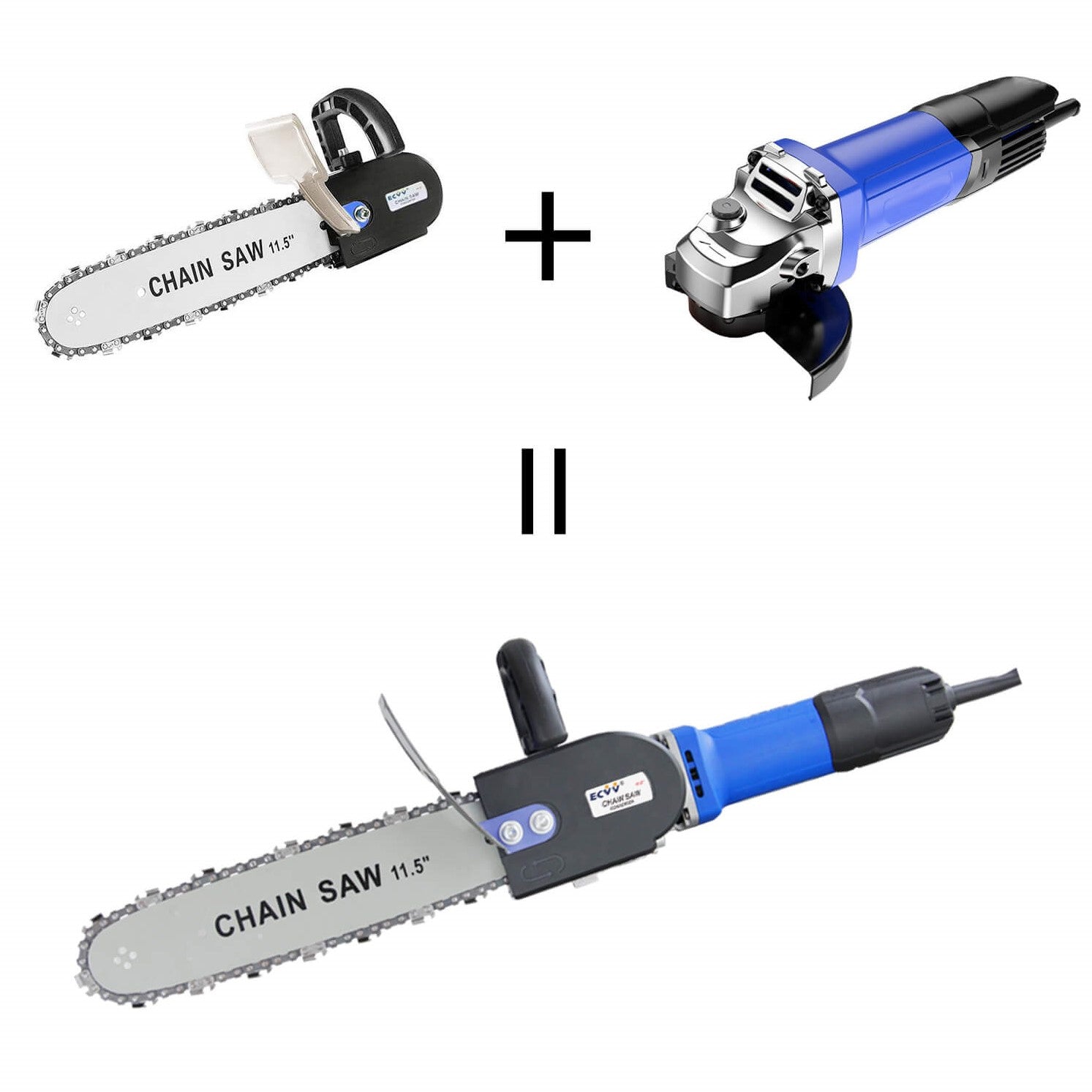

With Chain Saw Bracket Set, you can convert your angle grinder into an 11.5-inch chain saw to expand the functions of the angle grinder without having to purchase an additional chain saw. you can fully enjoy the functions of the electric chainsaw by using your grinder.
If you need both an angle grinder and a chain saw, then I would recommend you to choose our product because we provide the purchase option of ``angle grinder + chain saw'', it is more cost-effective to buy together, one machine for two use.
Features:
【
High-Performance】Combine the angle grinder with this Chainsaw Refit Kit, it can become a household electric chain saw which is effectively improve the efficiency of your woodworking, handles a variety of yard clean-up and maintenance projects.
（It is more cost-effective to choose to buy together with our angle grinder）
【
Ergonomic Design】Ergonomic ABS anti-slip handle makes it convenient and stable to hold in the hand, High-quality aluminum alloy bracket makes this chainsaw balanced, maneuverable, and comfortable to operate.
【
Smart and Reliable】The chainsaw with guide oil hole, Visual oil window automatic fuel injection design, automatically add lubricant to the chain to reduce chain wear.
【
Premium Quality】Steel + ABS plastic, guide bar material spring steel, chain material high carbon steel for fast efficient wood cutting, iron baffle prevents the spattering of wood scratches and effectively protects your safety.
【

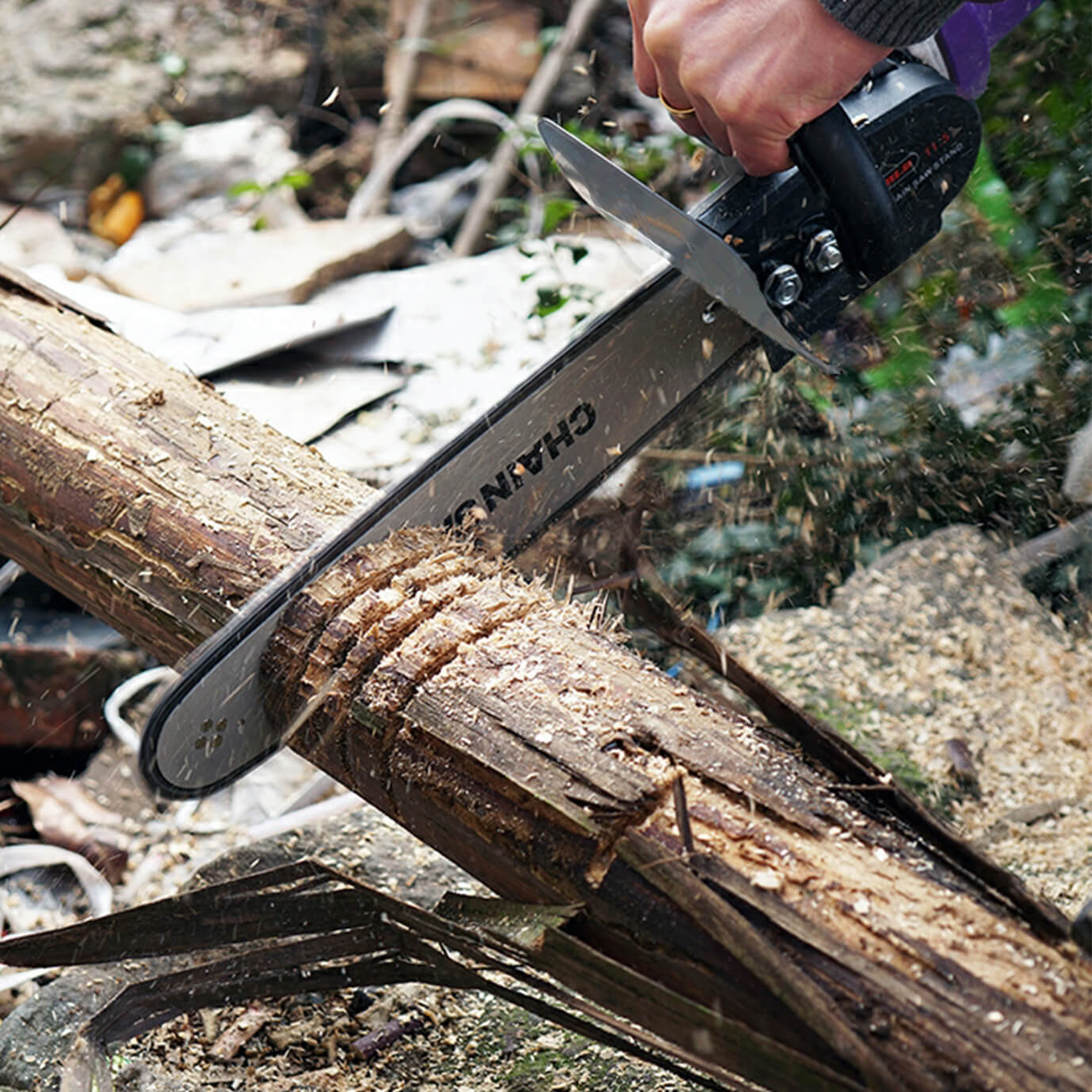

Versatile】 The chainsaw can be widely used for cutting firewood, felling, cutting wood, pruning, pruning and gardening. angle grinder makes easy work of cutting through metal pipes, stone slabs and ceramic floor tiles, as well as rust and paint removal. You can make an outstanding performance in various places such as gardens, patio, and orchards. We recommend one per family for do-it-yourself and garden work!
Specification:
Chainsaw Refit Kit
|
Suitable Grinder
|
100mm/115mm Angle grinder
|
|

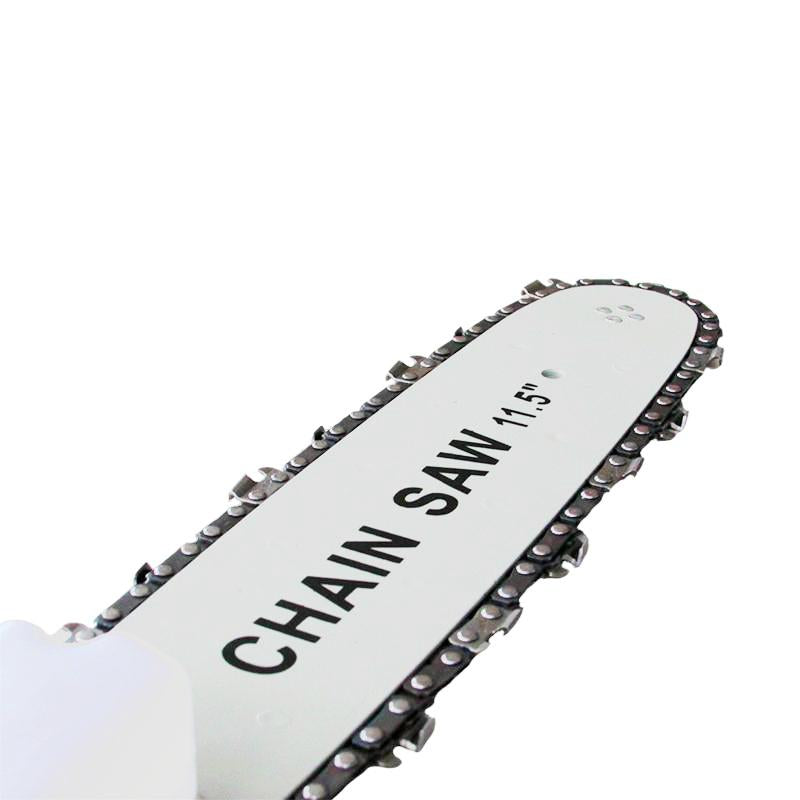

Guide Bar Size
|
About 34cm length, 6cm width
|
|
Guide Bar Available Size
|
11.5’’(29.2cm)
|
|
Guide Bar Material
|
Spring steel
|
|
Wood Cutting Diameter
|
About 28cm
|
|
Bracket Overall Length
|
About 39cm
|
|
Handle Height
|
About 19cm
|
|
Chain Material
|
High carbon steel
|
|
Chain Teeth
|
22
|
|
Chain Circle Length
|
About 82cm
|
|
Chain Thickness
|
Approx. 4.7mm
|
|
Drive Link Quantity
|
45 sections
|
|
Chain Input Power
|
Depending on your grinder
|
|
Package Size
|
350mm × 130mm × 60mm
|
|
Gross Weight
|
1.25kg
|
|
Net Weight
|
1.1kg
|
Angle Grinder
| Product Type: |
100 type Angle Grinder |
| Disc diameter: |
100mm |
| Rated voltage: |
220-240V |
| Rated power: |
750W |
| Rated frequency: |
50/60Hz |
| No-Load speed: |
12000R/Min |
| Plug type： |
UK |
How to Use:
Installation Demo Video
1、Press the angle grinder spindle lock key, use a wrench to remove the pressure plate, replace the lower pressure plate with the gear in the Chainsaw Refit Kit, put on the upper pressure plate, and tighten it.
2、Put the rubber washer on the angle grinder, put on the bracket and adjust the angle of the bracket, then use the hexagon wrench to tighten the hoop screw and put on the chain tension adjustment screw.
3、Place the chain on the guide rail, pay attention to the direction of the chain edge, put the chain on the gear, put the guide on the bracket, and then pass the pin on the adjusting screw into the guide hole.
4、Assemble the shell, metal shield and two screws, install them on the bracket and tighten the screws by hand. Don't tighten the screws yet.
5、Use a Phillips screwdriver to adjust the chain tension adjustment screw. Turn clockwise to tighten the chain, and counterclockwise to loosen the chain. After adjusting to proper tension, use an internal hexagonal wrench to tighten the two screws on the bracket shell.
6、Finally, install the auxiliary handle of the chain saw with the direction to the left. Pour the lubricating oil into the oiler before using the chain saw, open the smallest hole on the oiler, and it will start to lubricate automatically.
Note:
1. Please wear goggles and safety gloves during work.
2. Please observe the chain when you use it for the first time, re-adjust the chain after about 3 minutes of work, so that the chain tension is fully open.
3. When you want to tighten or loosen the chain, first you need to loosen the hexagonal screws on the shell. Then you can loosen or tighten the cheek screw with a screwdriver bit. When you think the chain is right for your job, you can re-fix the hex screw and then use the chain saw.
Package List:
Chainsaw Refit Kit：
1 * Chain Saw Bracket Main Body
1 * Guide Bar
1 * Chain
Chain Saw Cover
1 * Baffle
1 * The Handle
1 * Parts Pack
1 * Rubber Band
1 * The Instructions
Angle Grinder:
1 * Angle Grinder
1 * Side Handle
1 * Spanner
1 * Flap Discs
1 * User Manual
